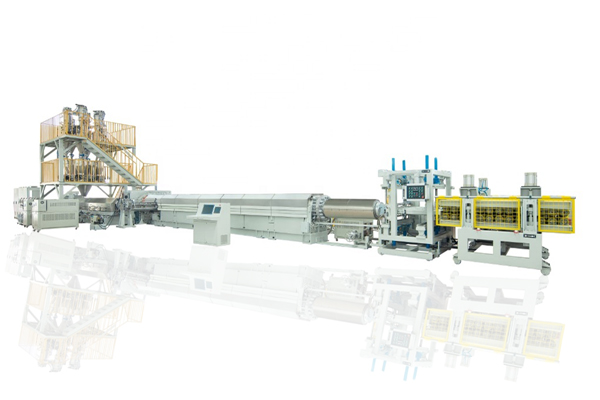

CO2 Foamed XPS Board Extrusion Line

Technical Information:

1. Material: GPPS

2. Foam agent applicable: CO2+Ethanol, DME, HFC, HFO, butane, pentane and LPG etc

3. Product width: 600/900/1200mm

4. Product thickness: 10 - 200mm

5. Output range: 200 - 3000kg/h

6. XPS Foam board density range: 25kg/m3-50kg/m3

7. Full automatic line from the material supplying to product package.

8. CO2 and alcohol are used as foaming agents, more enviremental than CFC and HCFC.

9. 100% recycled materials, both recycling EPS and GPPS are available.

10. Energy-Saving technology, with high performance-cost.

11 World famous control system: Siemens, ABB, Omron, Schneider, Dynisco etc

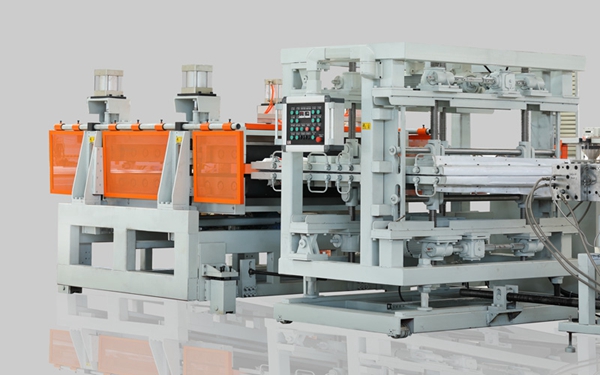

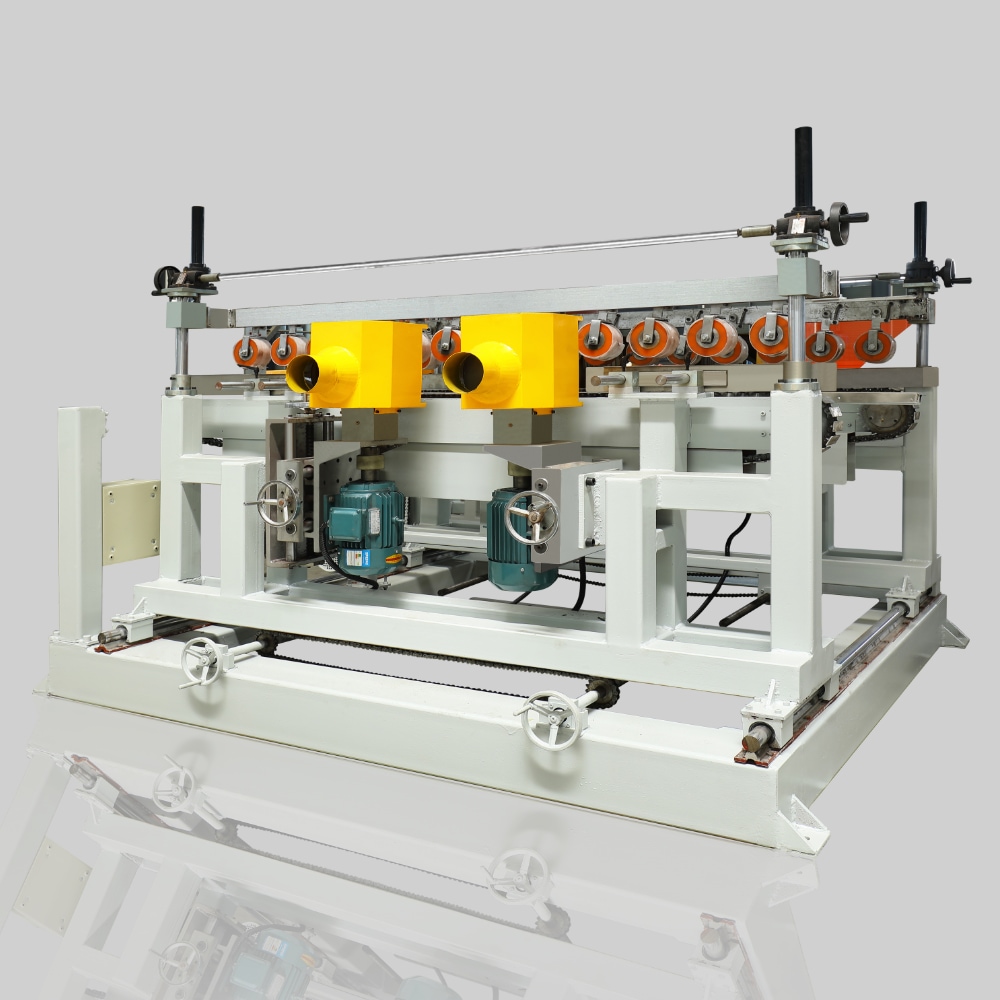

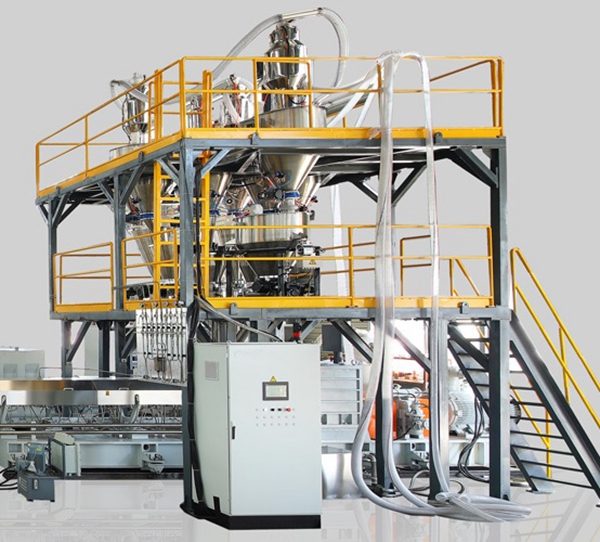

Machine Photos:
